$649.00

Our website applies a standard freight charge on most orders of $15.00 AUD including GST per delivery, regardless of quantity ordered. Heavy items such as Sealed Lead Acid (SLA) and large Lithium batteries are an exception to this ....extra freight charges may apply due to weight, transport method and delivery location.We will calculate this and notify you of any extra freight charge after your order is placed. This extra freight charge is at cost- meaning we seek to make no profit on freight. Please feel free to contact us for a quote on freight prior to ordering.

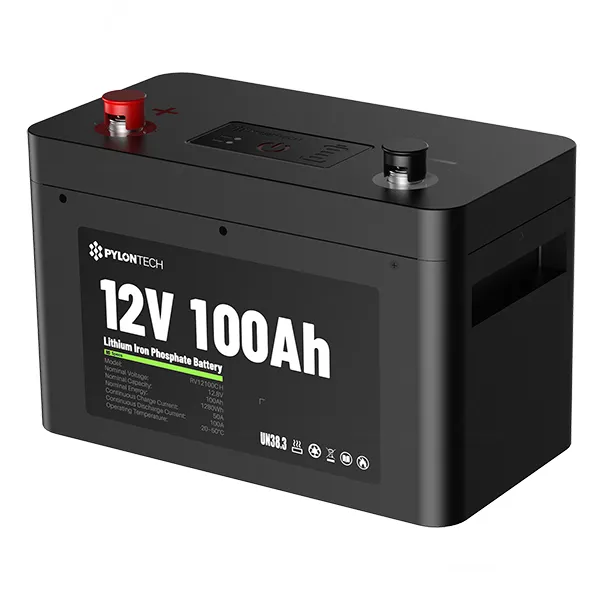

The RV12100CH is a 2nd generation battery solution designed for energy storage applications and is an ideal alternative to deep cycle lead acid batteries.

Suitable for use in Off-Grid & Battery back-up applications ,Recreational vehicles, trucks and small cabins, this Pylontech battery is approximately 50% lighter, with 30% higher energy density than comparable capacity lead-acid batteries.

Featuring an advanced "array aware" BMS with multiple safety functions, and capable of over 4000 cycles, the RV12100CH can be used in systems of up to 8 in parallel (10.24kWh). The self-balancing feature ensures all batteries in the system are balanced to ultimately increase service life and maximise your ROI.

Brand
Description	12.8V 100Ah 1280Wh LiFePO4 battery with SoC Indicator and up to 8 in parallel capability. IP20 Metal Case
Application	Lead Acid Replacement, Off-Grid Systems, Caravan/RV Storage, Industrial Market Applications, Deep Cycle
Chemistry	Lithium Iron Phosphate (LiFePO4)
Voltage	12.8V
Watt Hour	1280.0Wh
Nominal Capacity	100Ah
Maximum Continuous Discharge Current	100A
Termination	M8
Size	4S4P
Width	300mm
Height	210mm
Length / Breadth / Depth	160mm
Weight	12kg

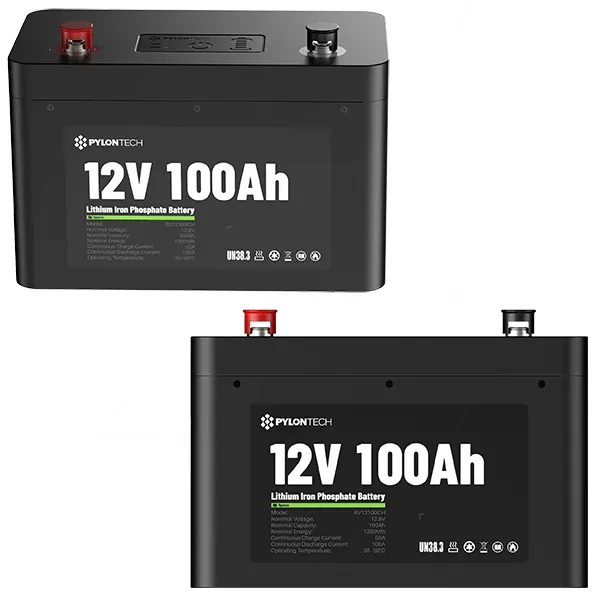

The top mounted interface panel features a press-button State of Charge (SoC) indicator for fast capacity checks, Handy ON/OFF button to isolate when in storage, plus LED indicator for battery status or error identification.

One of the big improvements to this tried and tested product includes the addition of an internal heating film to aid in the charging of the batteries if exposed to sub-zero environments. This innovative feature basically uses a battery charger to engage the heater, which increases the internal temperature of the battery to reach 0 degrees Celcius, to then start charging the battery.

The RV12100CH utilises cutting edge LFP cells encased in a rigid frame, embedded smart BMS and housed in a ruggedised IP20 rated metal case.
*We strongly recommend only using this battery is an indoor or moisture-free environment.

Important Information: PARALLEL CONNECTION CAPABLE

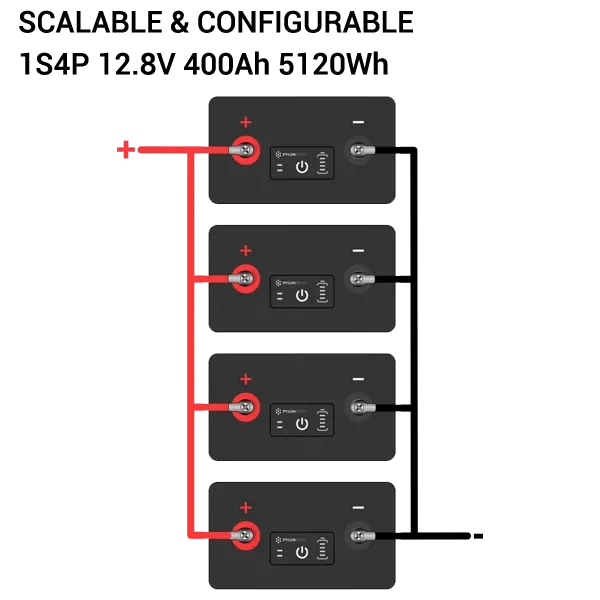

This Pylontech Lithium Iron Phosphate battery can be connected UP TO 8P in parallel* - NO SERIES CONNECTION ALLOWED
*See Product User Manual or Datasheet for more information.

Product Code: RV12100CH
